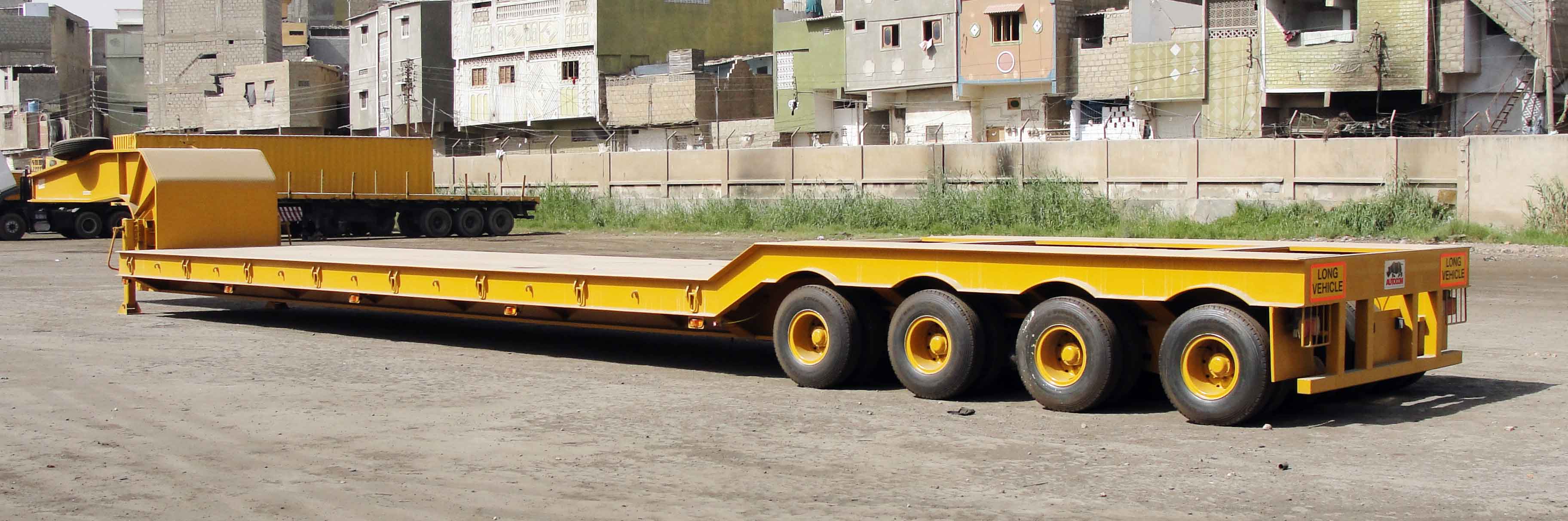

90 Ton Lowbed Trailer with boogie Axle

90 Ton Lowbed Trailer with boogie Axle

Drop Bed Semi-Trailer with Canti lever Suspension (Argonaut Bogie) for Transportation of Heavy Machinery Equipment on Paved and Unpaved Roads. Trailer has 32 tyres.

Strong, Heavy Duty Construction for Decades of Trouble Free Service. Lowbed Trailer has Heavy Duty Telescopic Landing Legs, full Line air Brake System, Pneumatic Parking Brake and Bogie Axle Suspension NATO Type SWAN Neck.

Features

  • Payload: 90 ton payload
  • Overall Width: 3,000 mm (approx)
  • Platform Height: 800 mm laden - 850 mm (unladen)
  • Bad Length: 11,000 mm (approx)
  • Total Length: 20,610 mm
  • Kerb Weight: 25,000 kg/li>
  • Wheel Rim: 6.5 x 15, 32+1 spare hardware
  • King Pin: 3.5"
  • Tire Size: 8.25R15-18
  • Axle: 4 Bogies, 20ton each
  • Landing legs: JostA400
  • G.T.W: 115,000 Kg
